AW100 Android industrial PDA

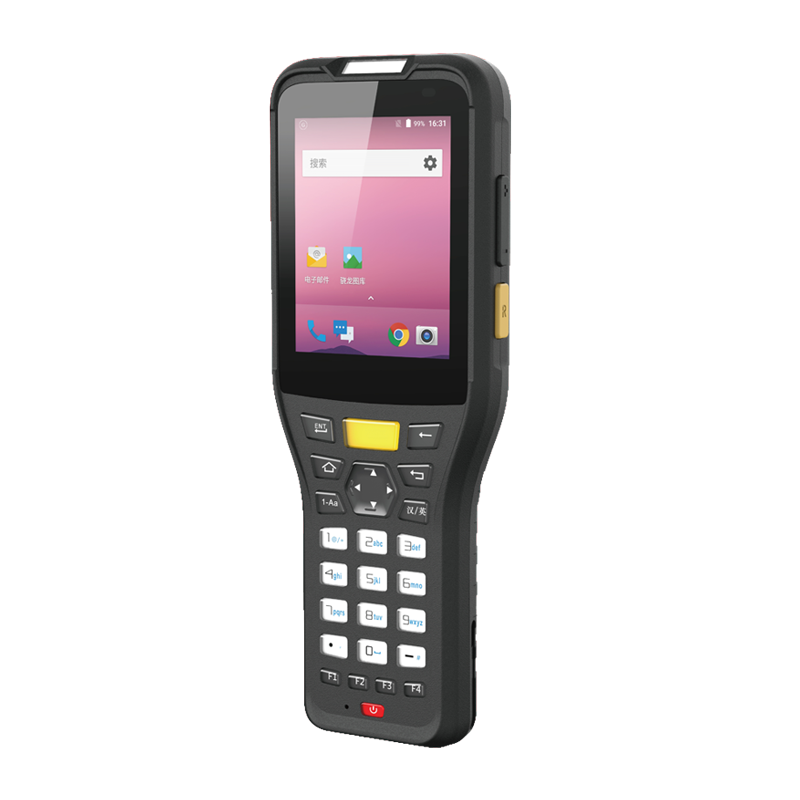

AW100Z

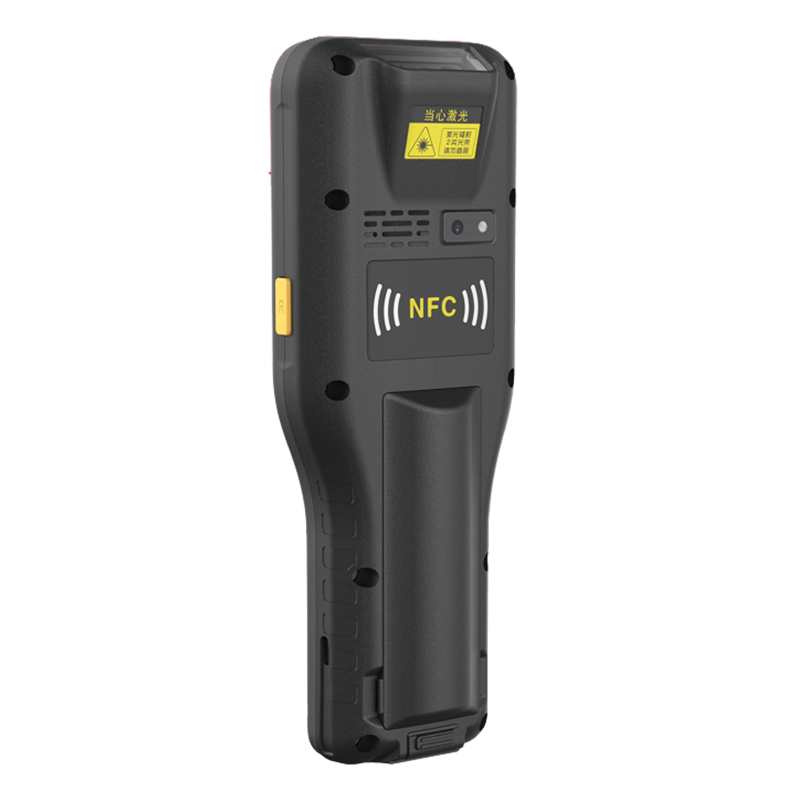

AW100F

Performance parameter

CPU:Qualcomm SDM215
RAM+ROM:2GB+16GB/3GB+32GB/4GB+64GB
Expansion slot:Micro SD card, minimum support to 64G

Development environment

  • OS：Android 9
  • Development：tools Eclipse/Android Studio
  • SDK：Terminal Software Development Kit

Physical parameter

Device dimension：173mm*63mm*33mm
Device weight：249g
Battery：3.63V/4800mAh，Li-polyment,
Keypad：PC keypad, keyboard backlight is white
Display screen：2.8 inch, 640*480 WVGA
Touch screen：Industrial capacitive screen, support wet/gloved finger input
Interface：USB 2.0 x 1, SIM Card x 1, TF Card x 1,
Power：QC2.0 fast standard, Type-C 5V 2A.
Speaker：1.2W high-power speaker
Charge LED notification：Red means charging, green means full charge
Scan LED notification：Scanning notification(red, green) / audio notification
Scan engine：N6603, N6703, N5703,SE4710,SE4750, SE965
Vibration：Built-in motor
G-sensor：Support 3 axes
Microphone：Single main microphone

Operation Environment

  • WWAN：GSM B2/B5
  • WCDMA：B1/B5/B8
  • FDD：B1/B3/B5/B7/B8
  • TDD：B38/B39/B40/B41
  • Bluetooth：BT 4.2 BLE
  • GPS：Support GPS/AGPS/Glonass/ Beidou, Target SNR≥39dB (Singal level-130dBm)

Physical parameter

Drop：1.5m
IP level：IP65
ESD：±15kv air discharge ,±8kv direct discharge
Environment humidity：5%RH ~ 95%RH(No condensation )
Operation temperature：-20 ℃ ~ +50 ℃
Storage temperature：-40 ℃ ~ +70 ℃

Data capture & Accessories

  • Rear Camera：8.0MP, auto focus,
  • Barcode format：UInPteCr/lEeAavNe,dCo2doef152,8D,iCscordeete392,oCfo5d, eC9h3in, Cesoed2e1o1f,5, Codabar, MSI, RSS,PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode;
  • Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)
  • Frequency：13.56 MHZ
  • Protocol standard：ISO/IEC 14443A/B, ISO/IEC 15693
  • Standard accessories：Adapter, USB cable, user manual,wristband
  • Optional accessories：Craddle charger, Single-slot battery charger,
